Conteneur frigorifique 40 pieds (Réf : 2022)

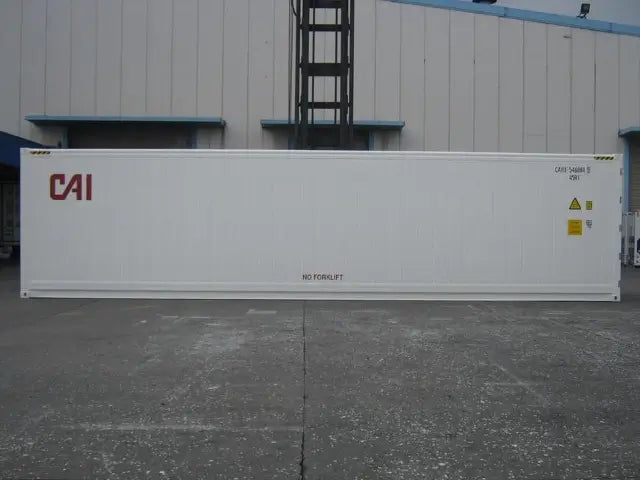

The new 40-foot refrigerated container, also known as a 12-meter refrigerated container, is often used for storing fresh produce. It operates on a 380V power outlet and is equipped with devices that work in a temperature range of +25°C to -25°C.

All our refrigerated containers have a CSC-Véritas certificate and a valid PTI inspection (inspection certificate for the refrigeration unit).

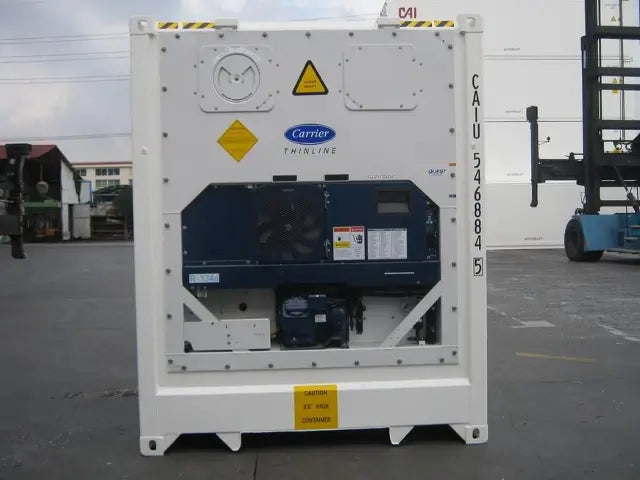

We work with engines from Carrier, Thermoking, Daikin, and Starcool. Internal dimensions

-Length: 12.06 m

-Width: 2.29 m

-Height: 2.56 m

-Internal height (up to maximum load): 2,469 mm

External dimensions

-Length: 12.19 m

-Width: 2.43 m

-Height: 2.89 m

Door dimensions

-Width: 2,292 mm

-Height: 2,562 mm

Temperature range: -25 to 25 °C

Refrigerant

-R134A

-R404

-R442 on request

Construction: CORTEN and INOX

Floor

T-shaped aluminum rail

Controlled via a Daikin, Thermoking, or Carrier console

Storage for up to 23 Euro pallets

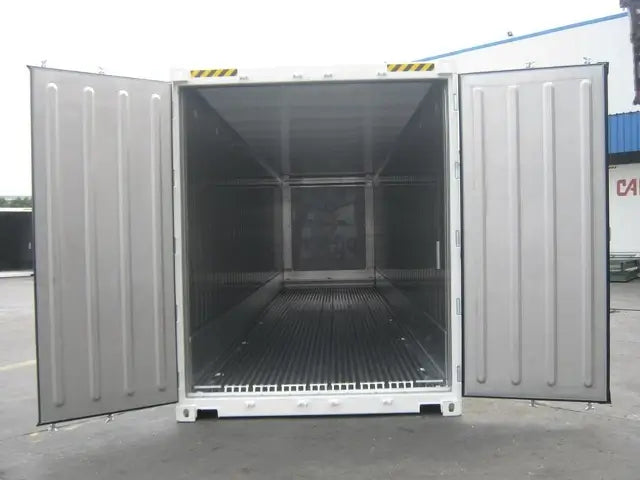

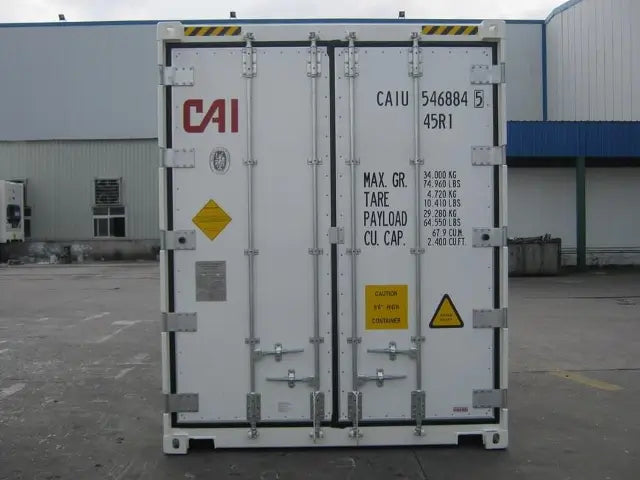

Double-leaf opening on one of the two outer sides

Doors open 270°

Additional information

- Maximum payload: 29,350 kg

- Tare weight: 4,650 kg

- Permissible total weight: 34,000 kg

- Usable internal volume (up to the maximum ventilation line): 65.60 m³

Modulbox: We accompany you from selection to delivery.
